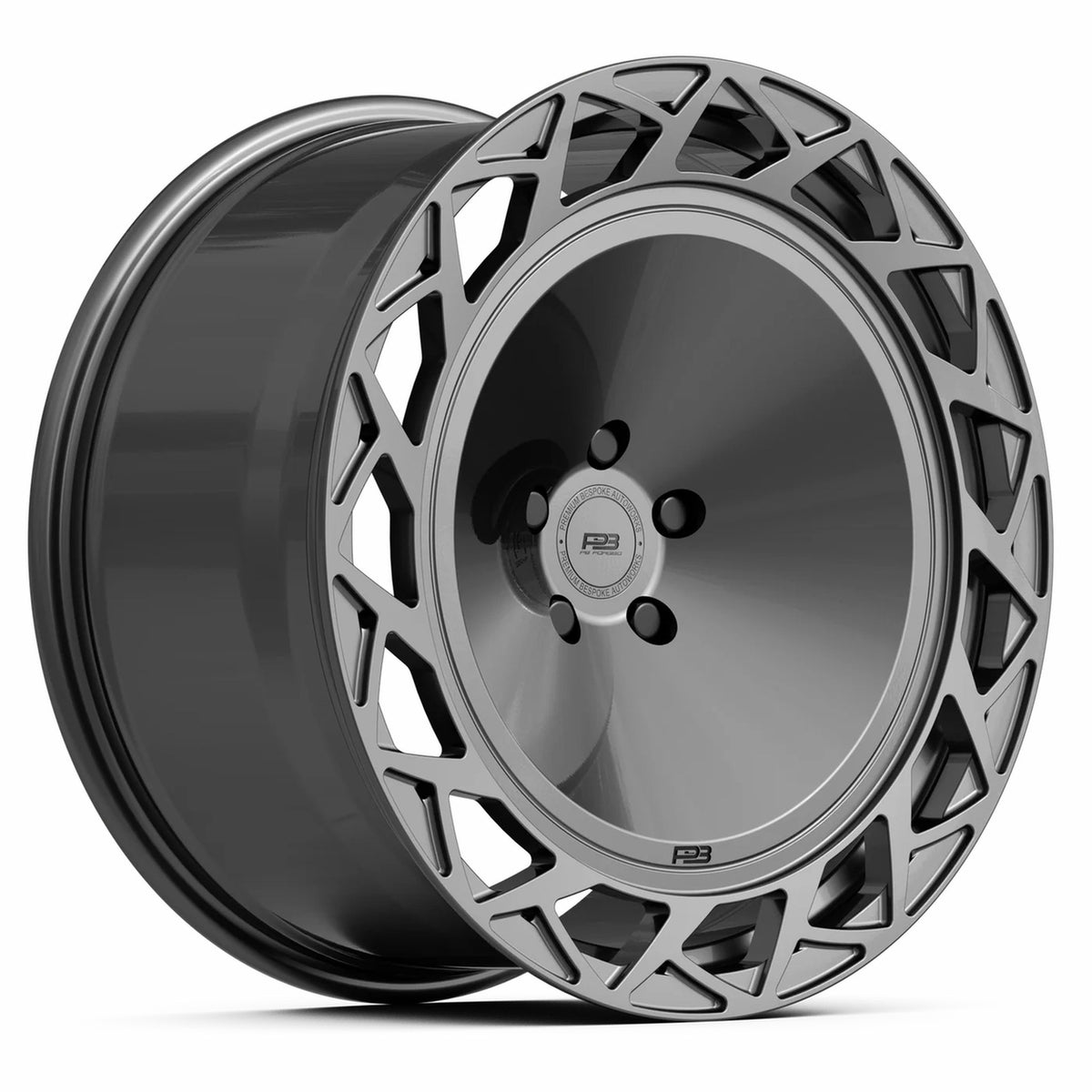

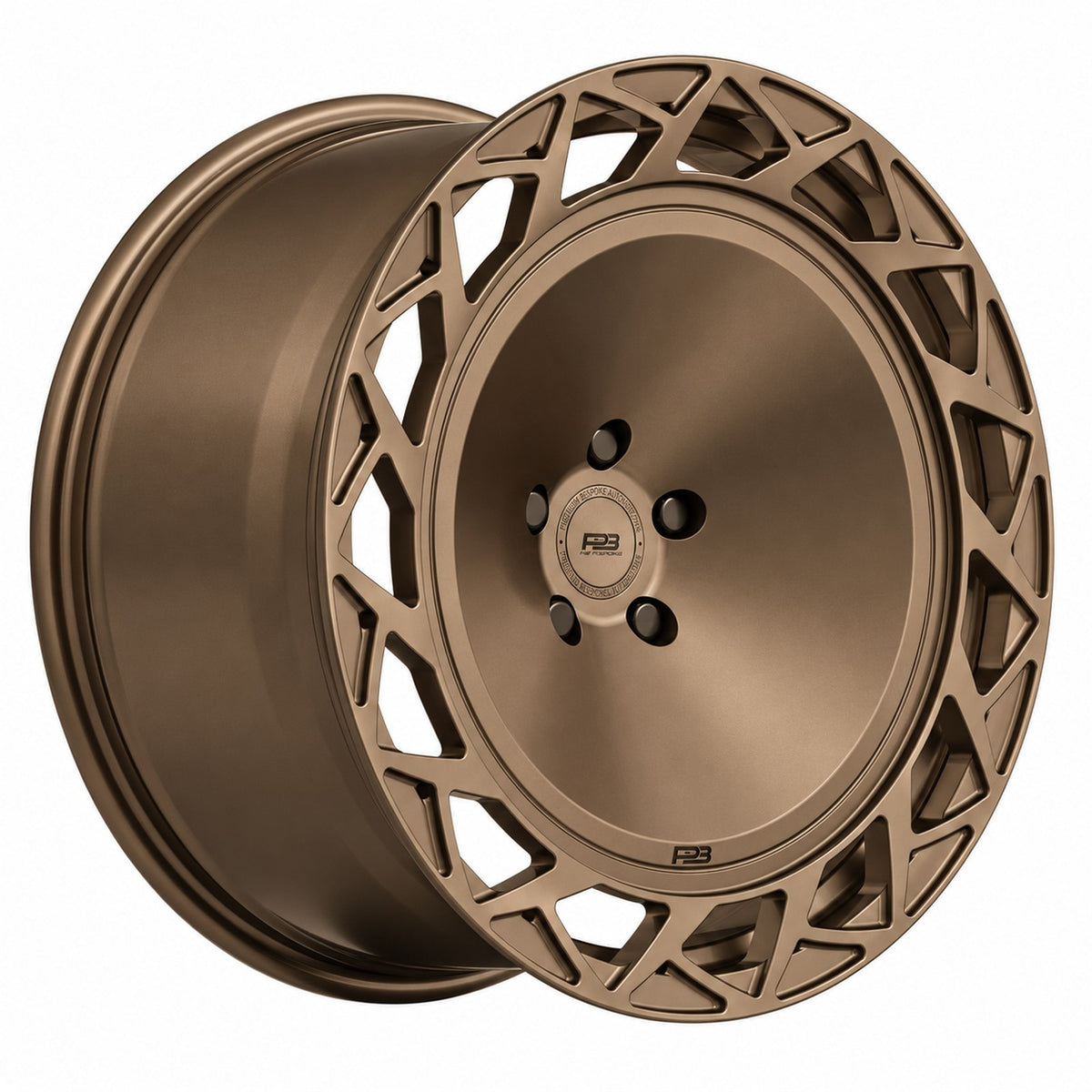

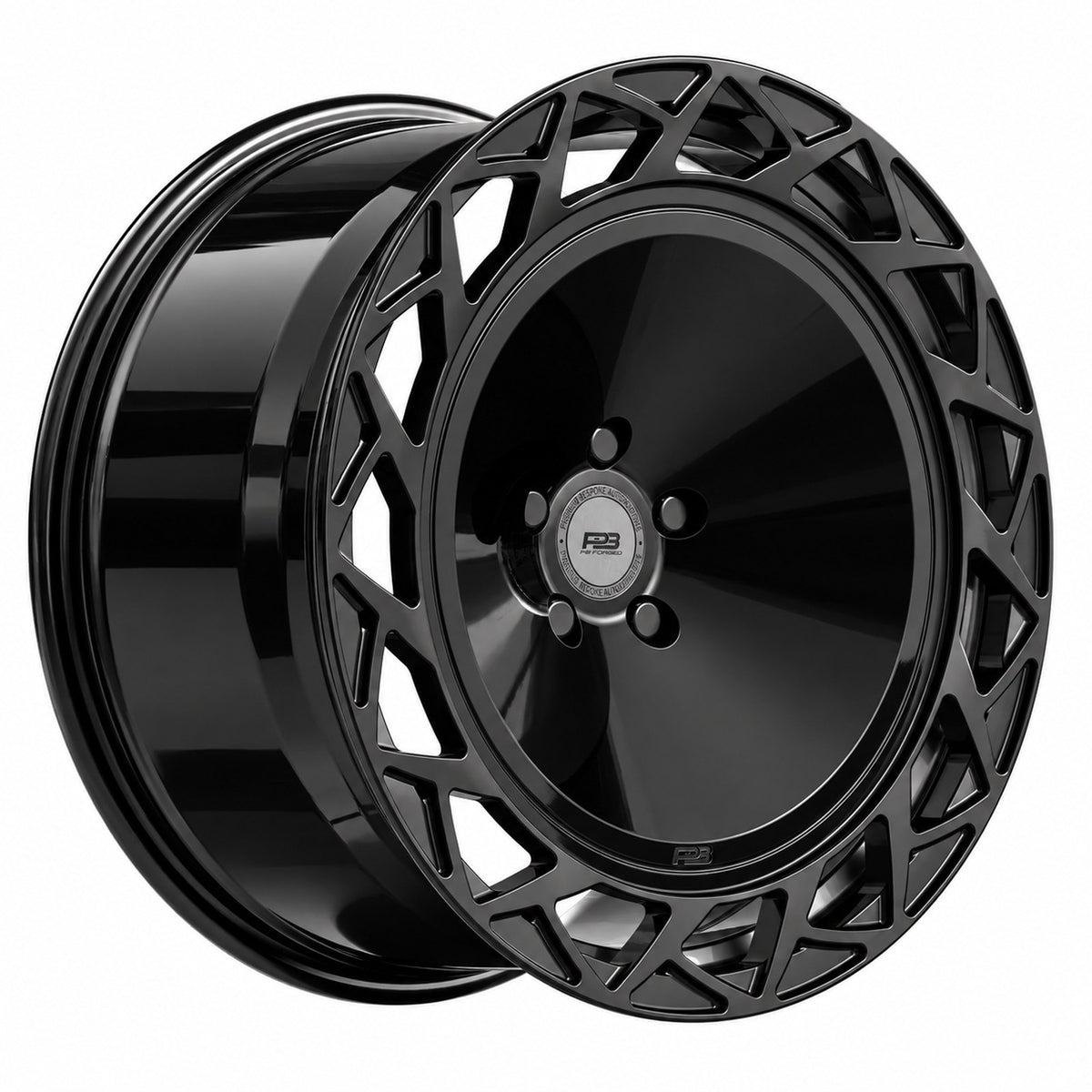

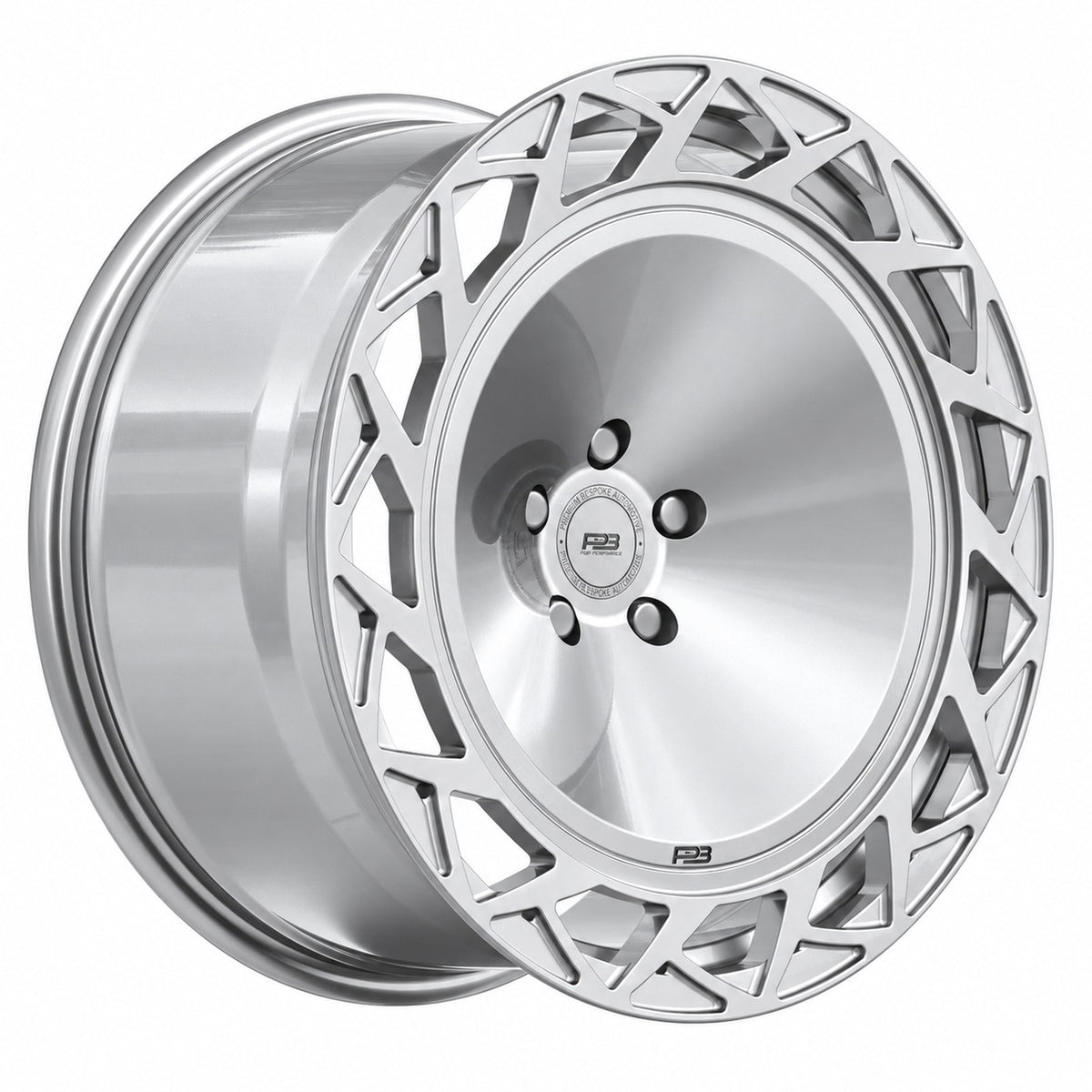

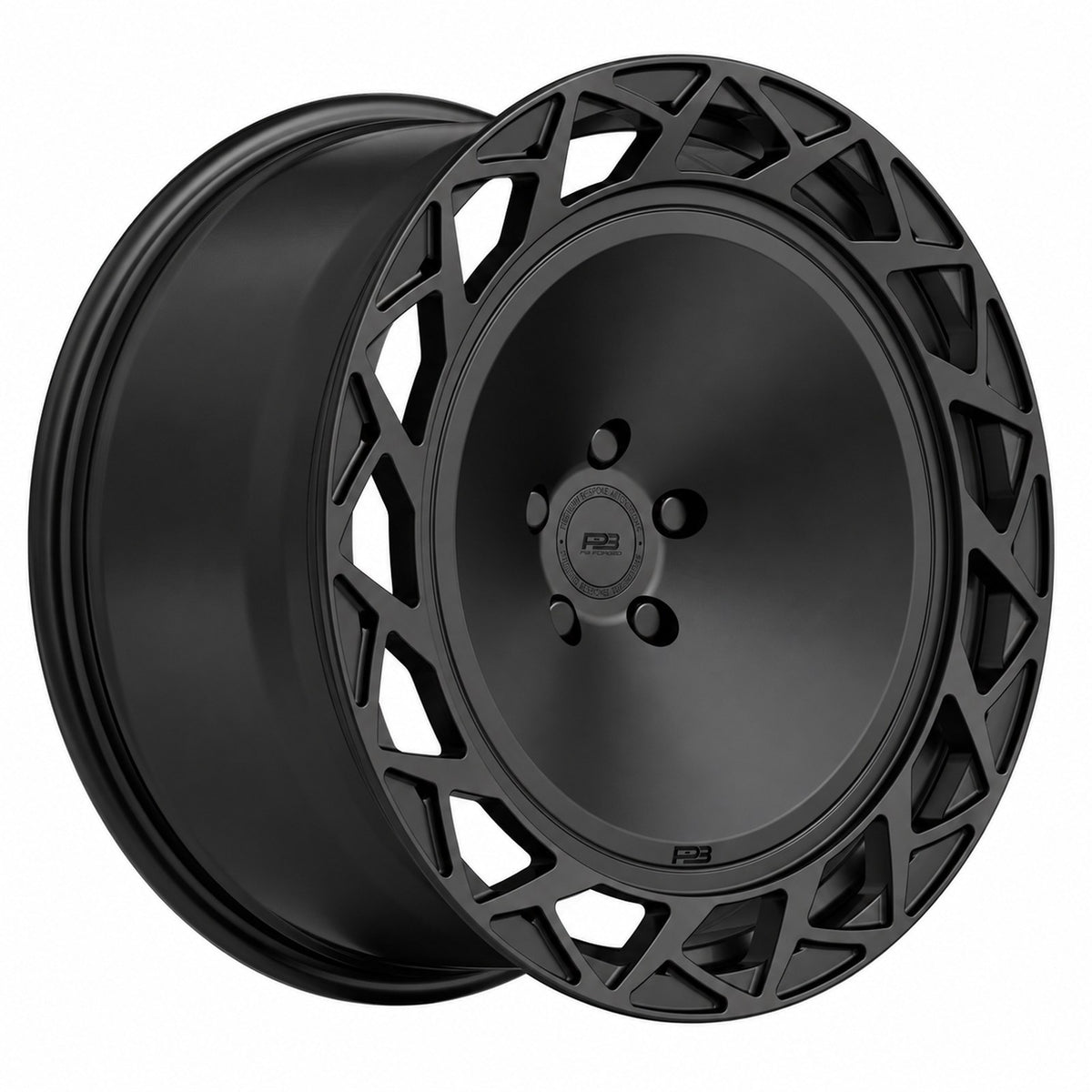

The PBF-13 built for the Next-Gen Ford Ranger P703, in 18 inch, 19 inch, 20 inch, 21 inch and 22 inch. A single piece monoblock forging, machined to this truck's own hub rather than adapted to fit it, so there are no spacers and no adapters.

Fits

Ford Ranger P703, 2022 onward. Double cab including the Wildtrak, across the 2.0 EcoBlue, 3.0 V6 and EcoBoost engines.

This listing is not for the Ranger Raptor. The Raptor runs a wider track and we will list it separately rather than guess at it.

Sizes

Choose 18 inch, 19 inch, 20 inch, 21 inch or 22 inch. All five run square, four wheels the same width front and rear. The factory fits 16 to 21 inch depending on trim, so 20 inch is the most common upgrade.

A word on load

This is a working truck, not a car. Every set we make for the Ranger is specified to cover the double cab loaded to its plated weight. We agree the rating with the factory before anything is cut and we will not supply a wheel that is under-rated for how you use it. If you run a tray, a canopy or tow near the limit, tell us and we will spec to that instead.

Fitment

• Bolt pattern: 6x139.7
• Centre bore: 93.1 mm, machined to the hub
• Fasteners: lug nuts, M12 x 1.5
• Wheel torque: 135 Nm
• Factory sizes on this truck: 16 to 21 inch, square, around ET55

Note the pattern. The Ranger runs six studs on a 139.7 mm circle with a 93.1 mm centre bore, much larger than a Defender or a Range Rover. It is why so many Ranger owners end up running spacers. Offsets are set per size when we build the set. We work to the truck, not to a catalogue number.

What you get

• A set of four, forged and finished to order
• Your choice of size from 18 to 22 inch
• Finish and colour chosen with you before anything is cut
• Design proof before cutting, two revisions included
• Lifetime structural warranty
• Free UK delivery, fully insured

Lead time

6 to 8 weeks from the day you approve the design proof.

Changed your mind

Tell us any time before we start cutting and you get a full refund. Once machining begins the set is made to your truck alone and cannot be resold, so we are not able to refund it after that.
