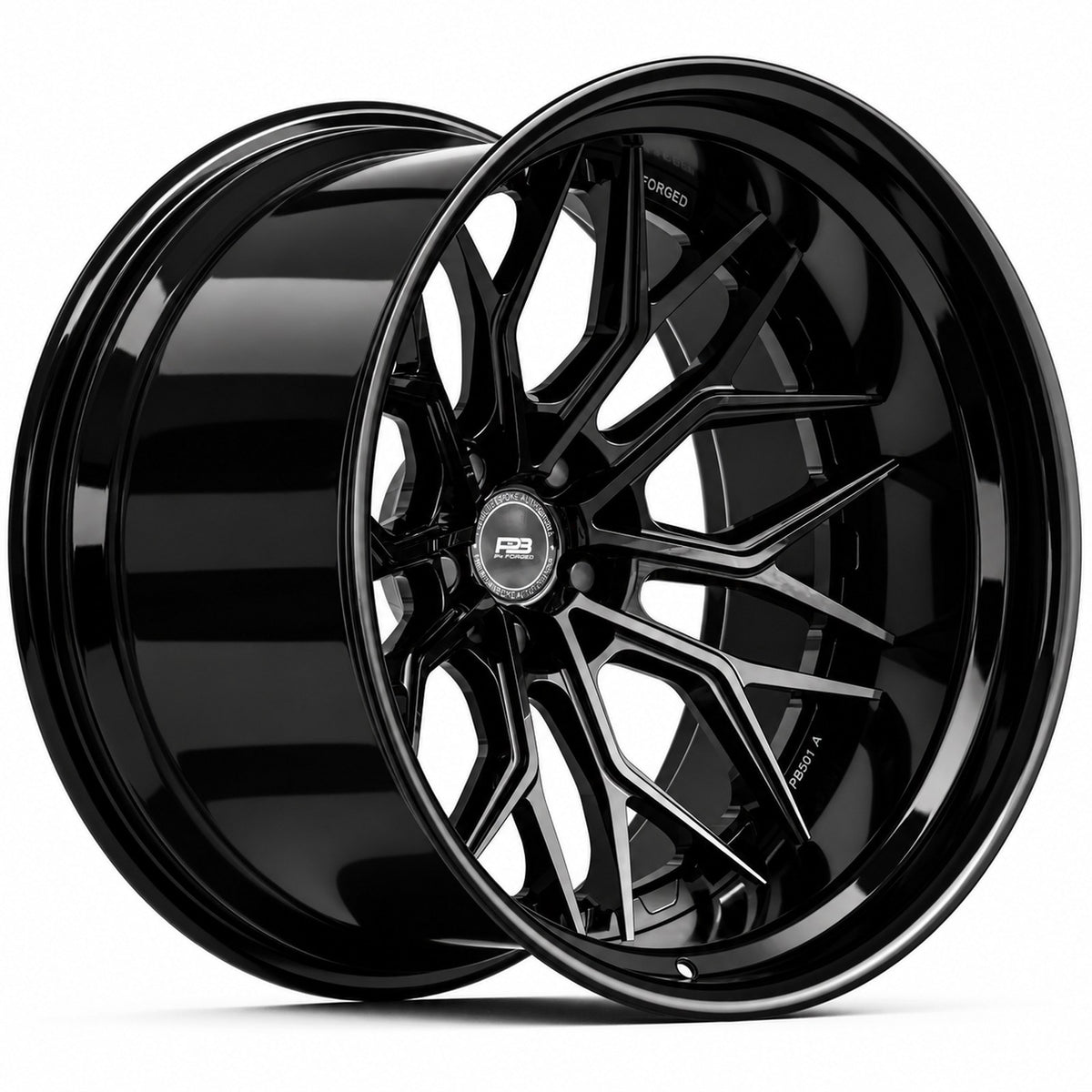

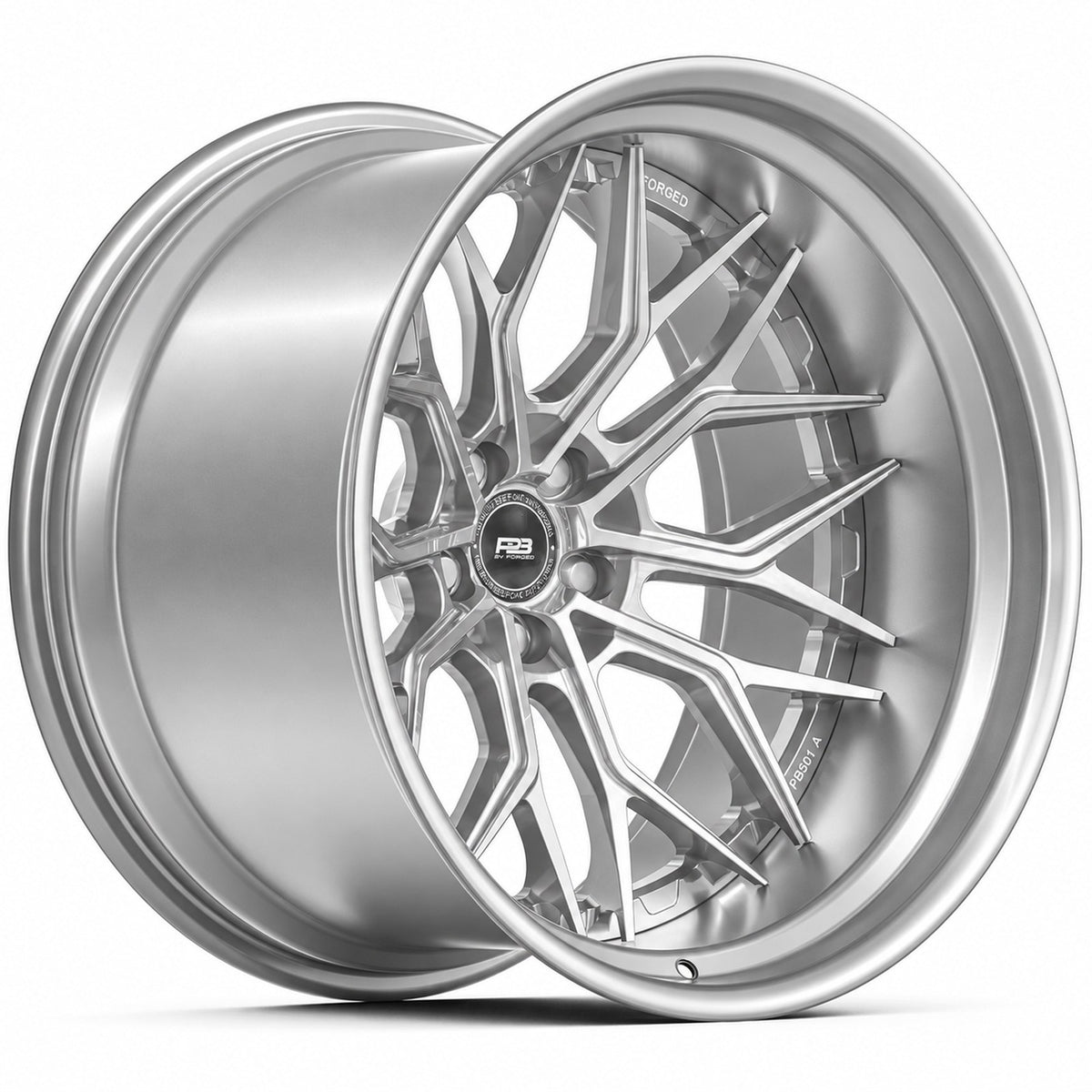

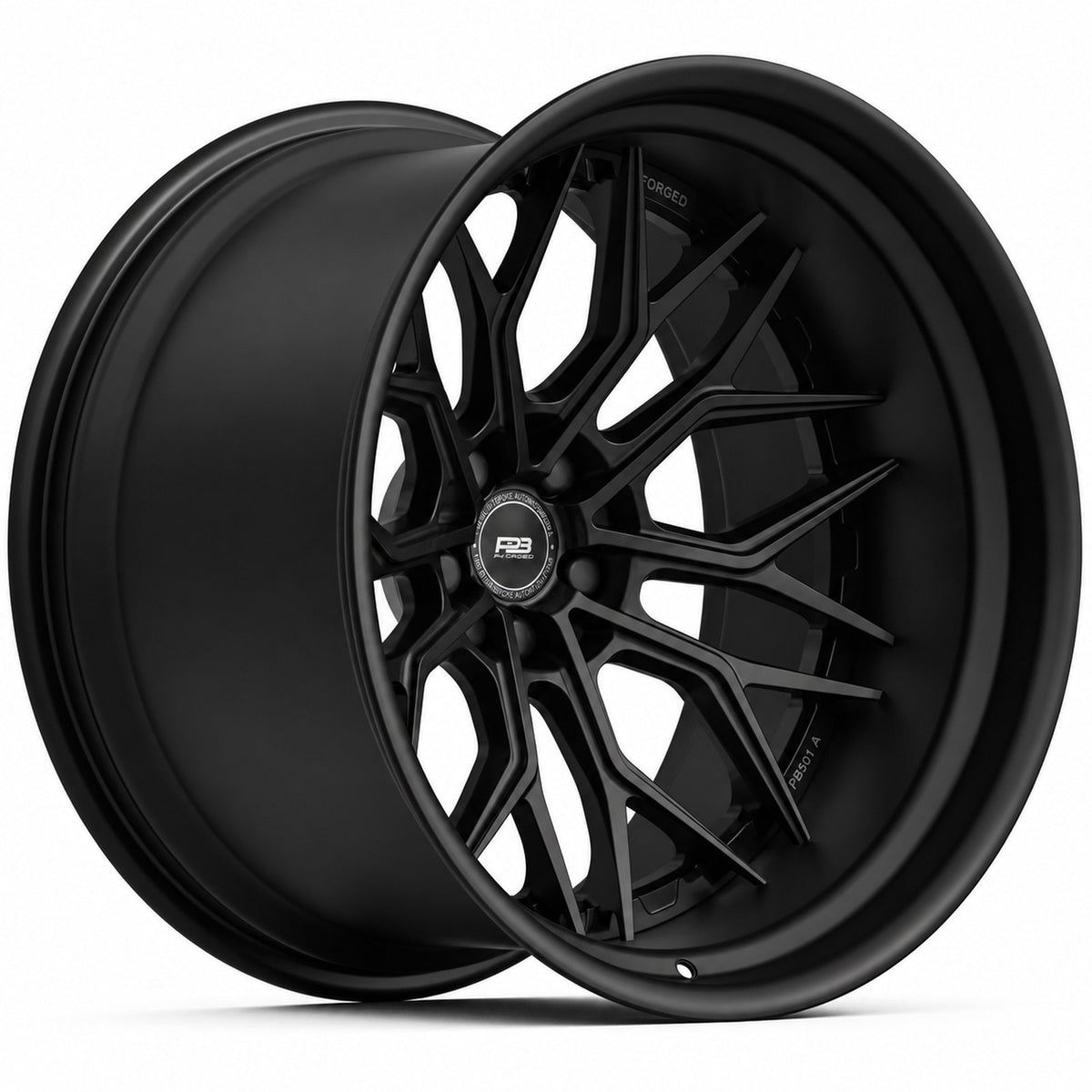

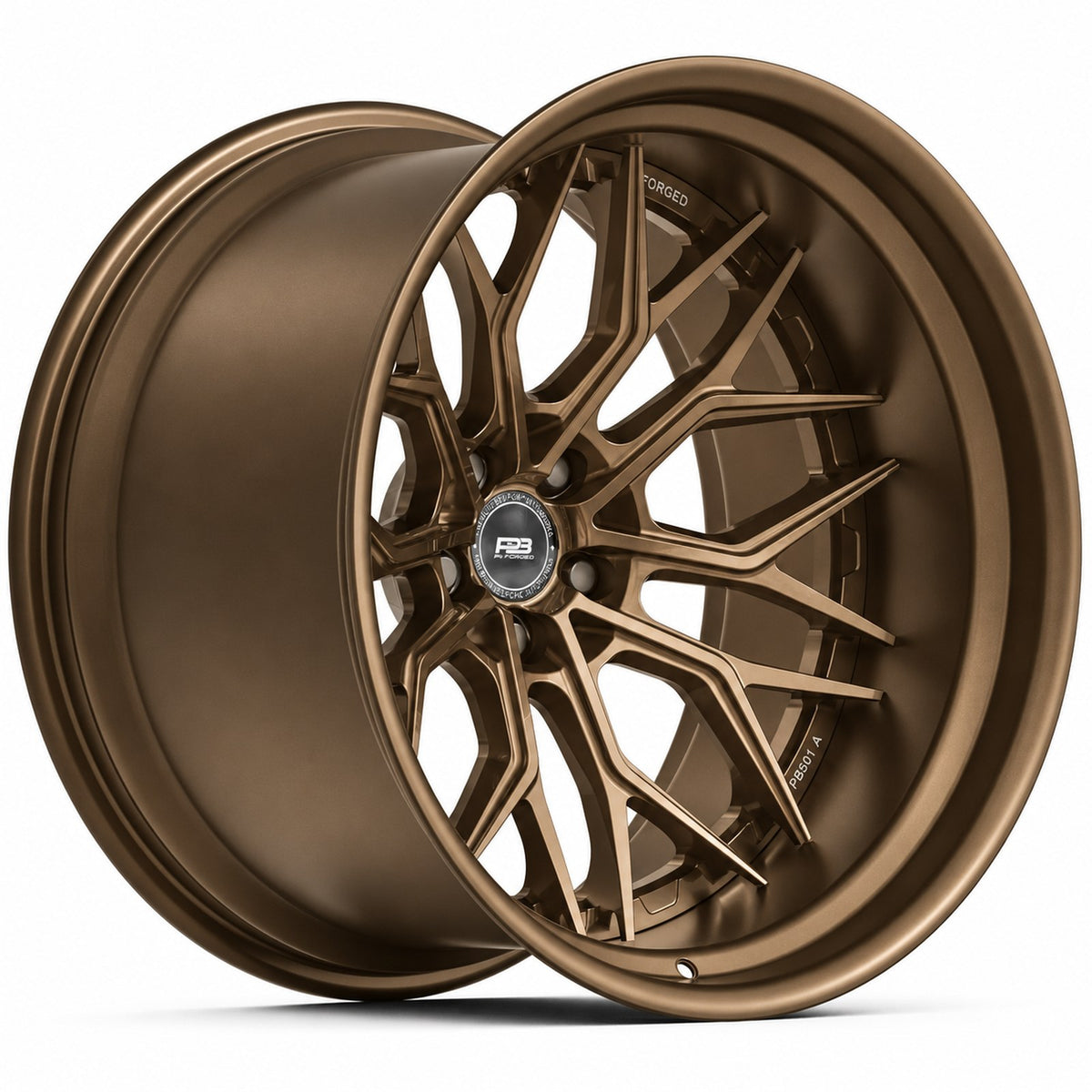

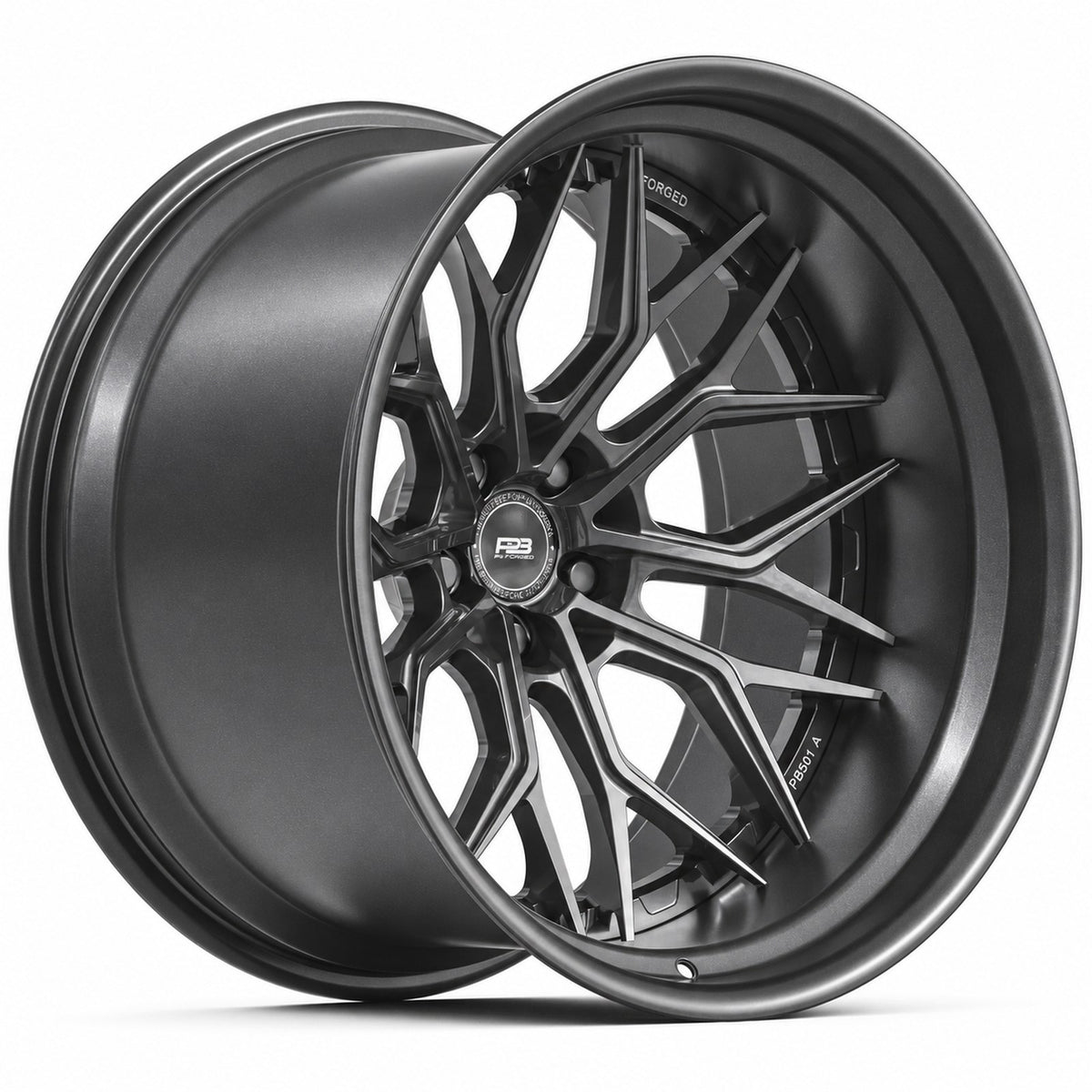

The PB 501A built for the VW Transporter T5, in 18 inch, 19 inch and 20 inch. The deepest dish in the offroad and van set, and the one that turns a T5 into a show van rather than a tidy one. Machined to this van's own hub. No spacers, no adapters.

Why two piece

The centre and the barrel are made separately and bolted together. That gives you dish depth a single piece forging cannot reach, and it lets you specify the centre and the barrel in different finishes, which is how most T5 conversions tie the wheels to the paint.

Fits

VW Transporter T5, 2003 to 2015, including the 2010 facelift. Panel van, Kombi, Shuttle, Caravelle and California.

Sizes

Choose 18, 19 or 20 inch, all square. The factory fits 16 to 18 inch, so 19 and 20 are an upsize.

Fitment

• Bolt pattern: 5x120
• Centre bore: 65.1 mm, machined to the hub
• Fasteners: lug bolts, M14 x 1.5
• Wheel torque: 180 Nm, which is higher than the T6.1 at 160 Nm

Load rating

The T5 runs commercial C rated tyres from the factory because it is built to carry weight. The set is rated to your plated axle weight and the rating is stated on your fitment sheet. Tell us the variant and your typical load when you order.

What you get

• A set of four, forged and finished to order
• Centre and barrel finishes chosen separately, before anything is cut
• Load rated to your variant, stated on the fitment sheet
• Design proof before cutting, two revisions included
• Lifetime structural warranty
• Free UK delivery, fully insured

Lead time

6 to 8 weeks from the day you approve the design proof.

Changed your mind

Tell us any time before we start cutting and you get a full refund. Once machining begins the set is made to your van alone and cannot be resold, so we are not able to refund it after that.
